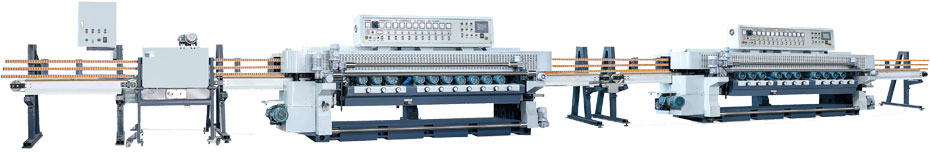

Rearview Mirror Production Line

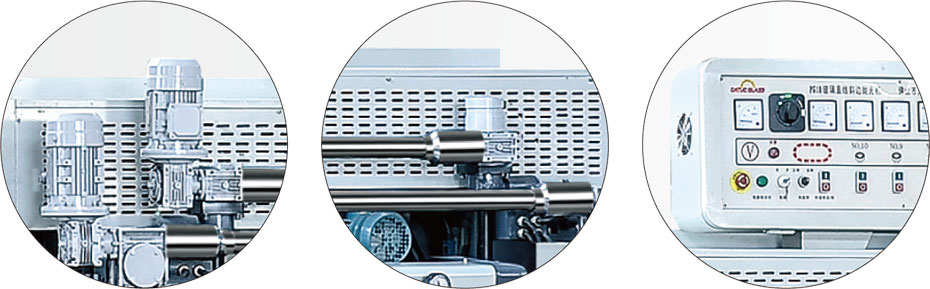

     Rearview Mirror Production Line contains a DB11 PLC Straight-line Beveler,one PG10 Straight-line beveling polishing machine as well as a DWL300 mirco-Vertical Washing&Drying Machine.DB11 PLC Straight-line Beveler and a PG10 glass polishing machine adopts chainless ball bearing construction,for insure smooth transmission,high-precision movement.The controlling system adopts PLC control which can be changed between automaticllyand manually.The human-machine interfave can show various parameters clearly,such as the glass thickness,edge slope,andprocessing apeed.The transmission speed adopts frequency control,and main driving motor adopt frequency conversion motor.The machine can grind and clean the rear transmitting plate by itself.DWL300 Vertical Washing&Drying can be completed directly online polishing.Time-saving totally in making more effcient.

•
